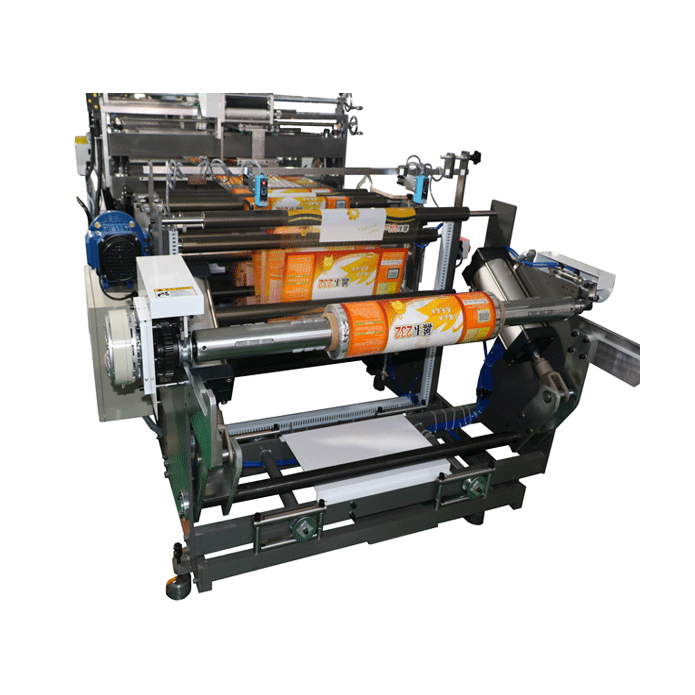

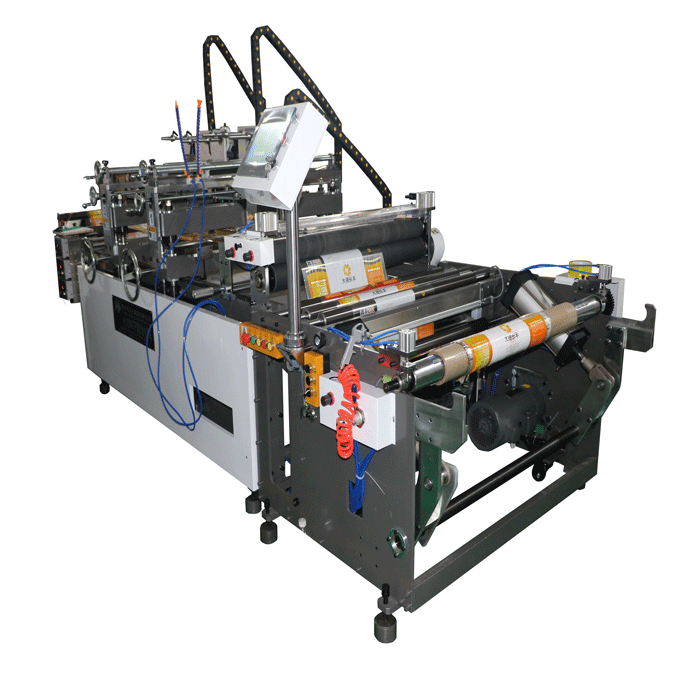

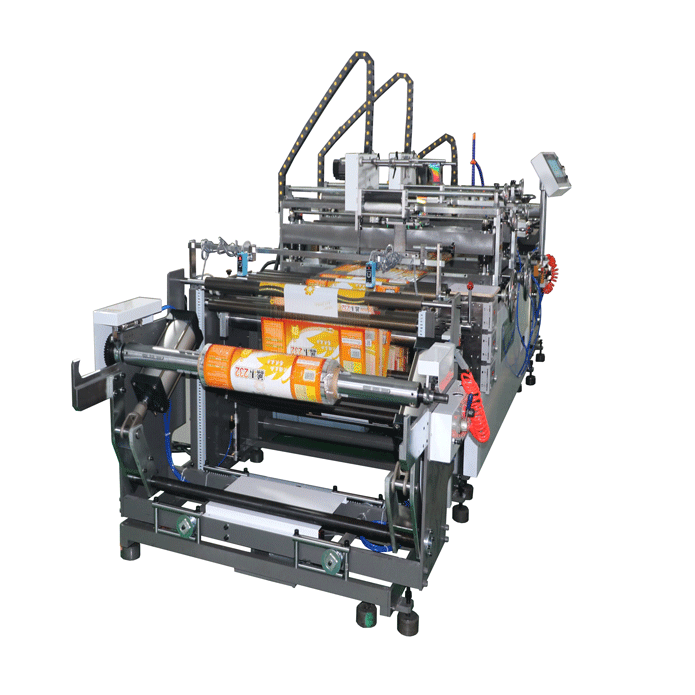

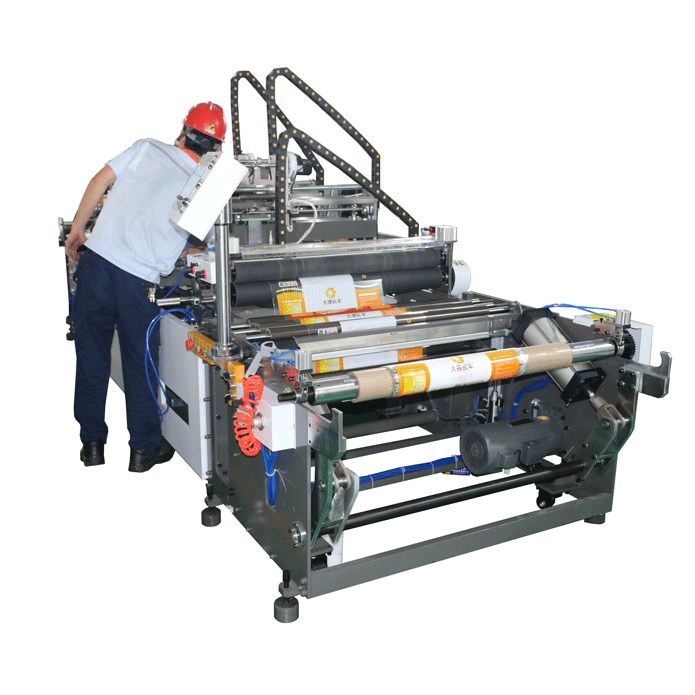

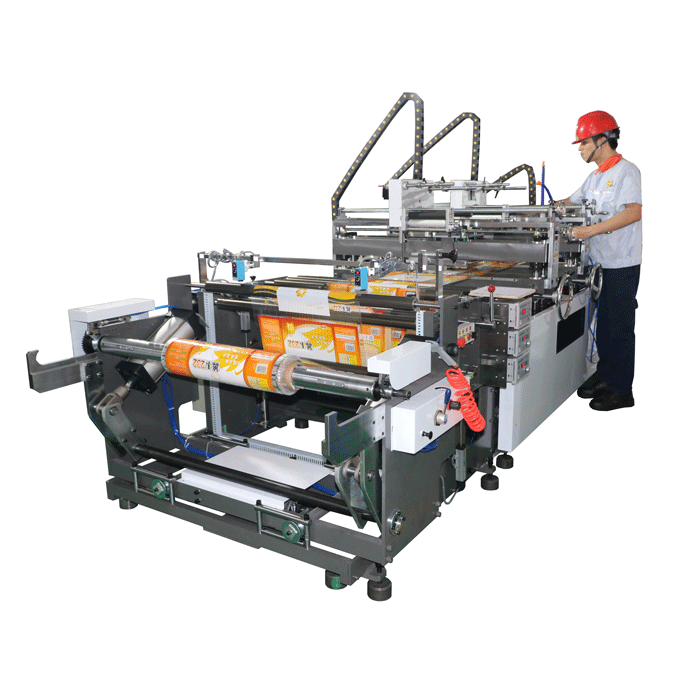

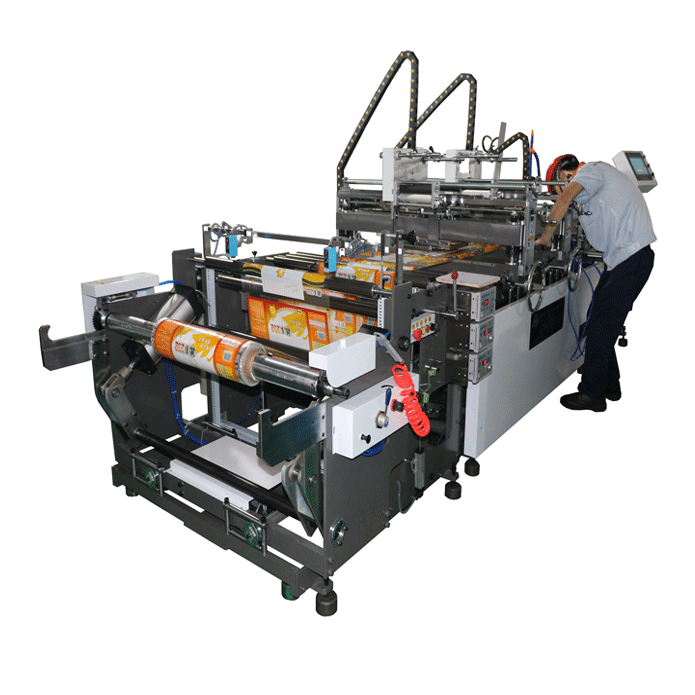

H-TC3025RR full Automatic film gilding machine

H-TC3025RR Full automatically film hot stamping Machine //Structure

Feeding

Automatically

Initial position

Sensor control .

Working table

 Transport working table

Transport controlling

 Tension adustment device; automatically Position correcting set

Drawing identification

Sensor and service motor controlling

Press

Vertical press

Temperature control

Heating tube Heater, automatically controlling

Foil collecting

Automatically collecting

Blanking

Automatically

H-TC3025RR Full automatically Film hot stamping machine //Usage and characters

Guide

• This is a specific roll materials, such as films, web, stickers and design of automatic flat hot stamping machine;
• Suitable for all kinds of roll material surface bronzing certain pitch;
• Roll material surface bronzing, two cases, one is not printed materials, this relatively simple form gilt; another one is already printed materials, this form requires precision photoelectric bronzing recognition.
• Stable lateral movement by inverter motor control, stamping pressure evenly, good stamping quality;
• Programmable logic controller precisely adjust various parameters, a good user interface;
• Set up a single machine debugging function operation, you can set up a fully functional operation.

Application fields

• Unprinted roll surface bronzing various materials;
• A variety of printed materials gilt rolls;
• Suitable adhesive industry, plastic packaging industry, the composite film packaging industry.

H-TC3025RR Full automatically film hot stamping Machine //Parameter

Technical parameters

• Maximum stamping width: 800 MM;
• Maximum stamping area: 300 × 250MM;
• Table size: 900mm × 500mm;
• Maximum printing speed: 5M / min;
• Transfer time range: 0-99 seconds;
• Reeling foil time range: 0-99 seconds;
• Stamping head down stroke: 60mm;
• Maximum stamping pressure: 1000kg;
• Heat Wattage: 4 * 500w = 2000w;
• Power supply: 3 phase 380V;
•  Drive motor power: 1000W.

Works supply

• 3Phase 380V Power supply;
• 5-7Bar Compress air;

Package list

• Package size: 3290×1480×1790MM;
• Gross weight: 1063kg
• CBM: 8.715896

H.S.Code

8443198000

Certificate

CE

H-TC3025RR Full automatically Film hot stamping machine //Advantage

Function

• Microcomputer control, touch screen operating system;
• Four Figure counter build in, high degree of automation;
• High-precision tension control mechanism, film conveying smooth, uniform tension;
• Stamping head position can be flexibly adjusted to any position in the film stamping;
• Automatic temperature control system, precise and accurate temperature control;
• Transfer time, Collecting time, temperature control to adjust the settings have been several significant ways;
• High-precision electric Sensor control device, precise control of stamping pitch;
• Stepless speed adjustment, stable and reliable machine operation speed;
• Automatic alignment device, receives the paper part of the automatic collection;
• High-precision stainless steel coil roll, stable and lasting life;
• Rolls for products such as roll, roll film, the continuous self-adhesive label gilt.
