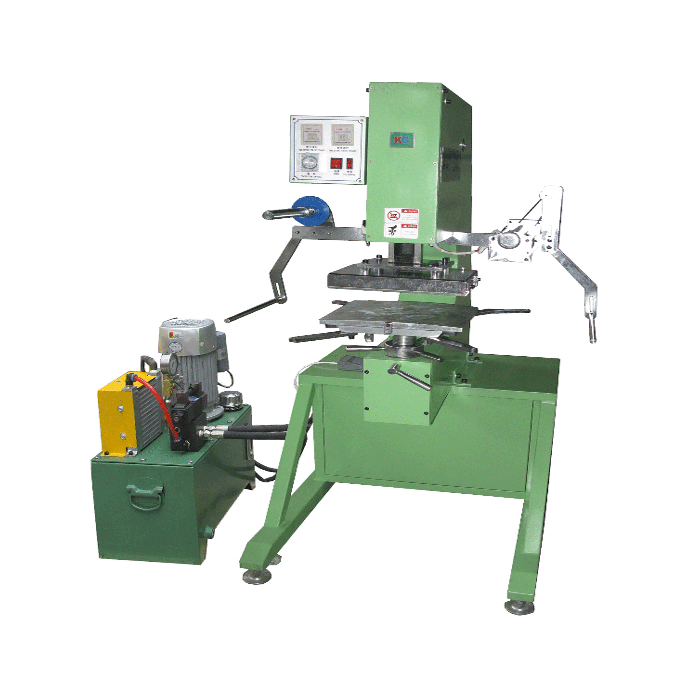

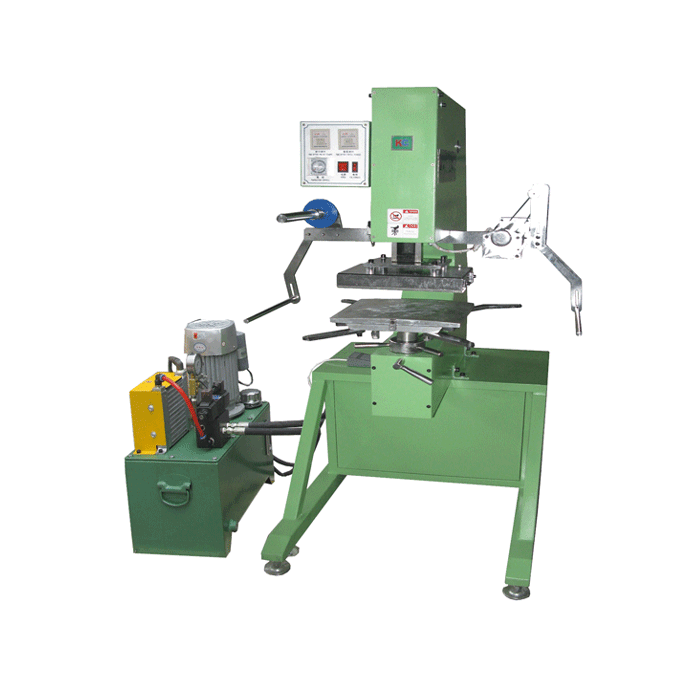

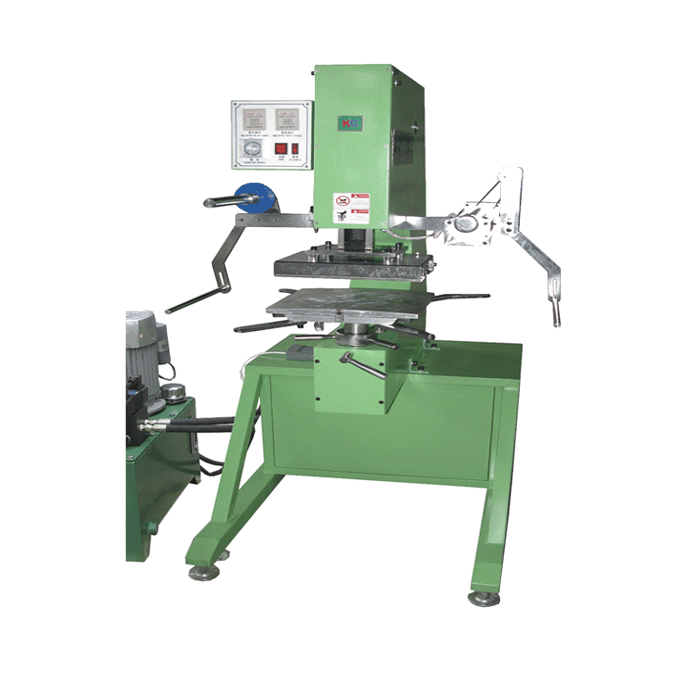

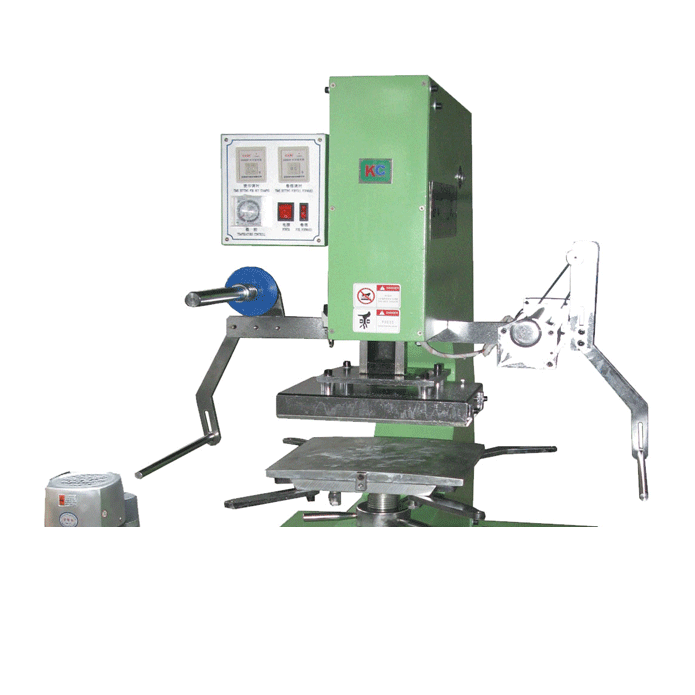

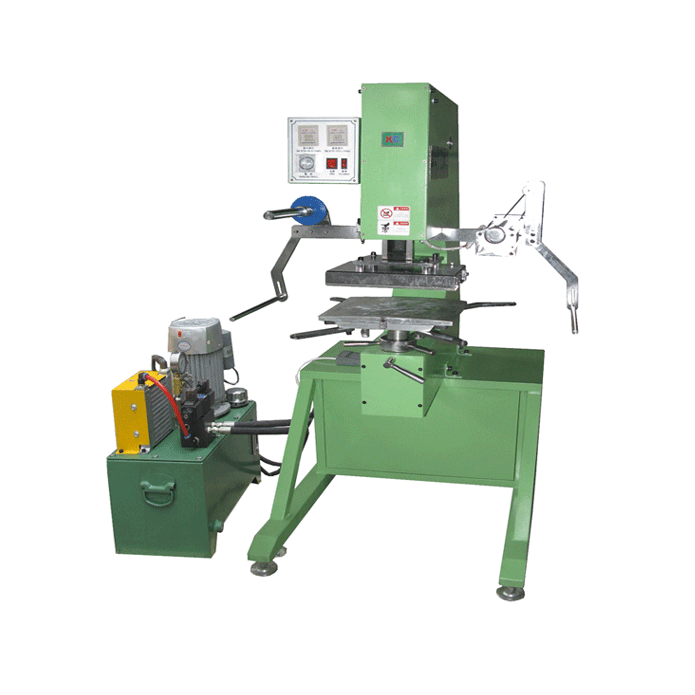

HH-TC3030B Hydraulic flat hot stamping machine for container
| |
| Stamping Head drive | Hydraulic -drive |
| Foil collecting method | Motor-drive , Collecting time adjustable |
| Temperature controlling | Heating tube heat up,Automatically temperature controlling,temperature free setting |
| Size of stamping plate and table | 300×300mm/ 500×650mm. |
| Press adjustment way | Up-down of working table |
| Working table | Micro-adjustment device, push out and in |
| Usage | Paper Gilding, Leather Impression,Woodware Baking,Paper Concave-convex embossing, Cloth hot stamping, Plastics Bronzing ,Glass and metal Heat transfer, All-type container, waste-bin bronzing |
| Technical Parameter | HH-TC3030B 1.Size of stamping Plate: 300 × 300 mm ; 2.Size of working table: 500 ×650mm ; 3. Max Pressure: 15000 Kg 4. Up-down stroke: 100mm 5. Heating wattage: 6×500 W 6. Foil feeding way: Motor Drive; 7. Temeprature range: 0-300oC |
| Production Advantage | 1. Workbench using a special cantilever structure, which will help to place different types of turnover box. 2. Table can be up and down, the precision adjustment, to facilitate the adjustment of the precise location of the gilt; 3. Table lifting screw adjustment, simple and convenient; 4. Relays for process control, stable operation, easy maintenance; 5. The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control; 6. leveraged hydraulic pressure, the pressure is uniform and strong; 7. The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment; 8. Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area; 9. Using high strength steel, gilt plate and table, has a very high flatness; 10. Heating tube for heating, heat supply is stable, easy to replace. |
| Packaging Parameter | Package size: 1200*1000*1720mm; Gross wieght: 350kg; CBM: 3.92 |
PVC film for machine
* Dust-proof
* Moisture
Wooden case
* Fumigation free
* Plywood
Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.
By Air:
Suitable small machine, machine parts, Emergency order.
Dast delivery but cost expensive.
By sea
Suitable big machine, Liquid materials, industrial application; world widely use
By train
Suitable middle-asia country.
- Printing machinery industry Alibaba 13 years golden supplier .
- 15 years of sales experience. areal understanding of customer need.
- Clearly marked price, earn consciencemoney. Profits no more than 20%.
The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!
Excellence in product quality depends on the high precision machining equipment;
The company has dozens of leading domestic CNC, pad printing machines, silk screen printer, hot stamping machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment.
Pad printers:
- 1 color, 2 colors, 4 colors, 6 colors, 8 colors, 10 colors
- Closed cup pad printer and open inkwell pad printer;
- Customize full automatical pad printer;
Screen printer:
- Plain screen printing machine and Multi-function screen printing machine
- Pneumatical screen printing machine, Motor screen printing machine
- Full automatical screen printing machine
Hot foil stamping machine
- Manual, Sem-auto plain hot stamping machine and Cylinder hot stamping machine
- Hydraulic hot foil stamping machine;
- Full automatical hot foil stamping machine
All Machine has CE certification.
CE of pad printers
CE of screen printers
CE of hot foil stamping machine
CE of UV exposure machine and UV curing machine. Etc
1.Q:Are you a factory or a trading company?
A:Our factory has over 25years printing machine manufacture experience,so you can trust us absolutely!We have a number of qualified technicians in the field of design and production saler,with which we can provide overall service for you at any time!
2.Q:Can you send me the video to show how the machine works?
A:Of course,we have made video of every machine and uploaded them to Youtube!
3.Q:How can i know your machine works well?
A:We shall test the machine working condition for you before delivery!
4.Q:How can i know your machine is designed for my products?
A:You can send us samples of you product and we test it on machine!
